Power Integrity Upgrades in AI Servers: Evolving Roles of Silicon Capacitors and MLCCs

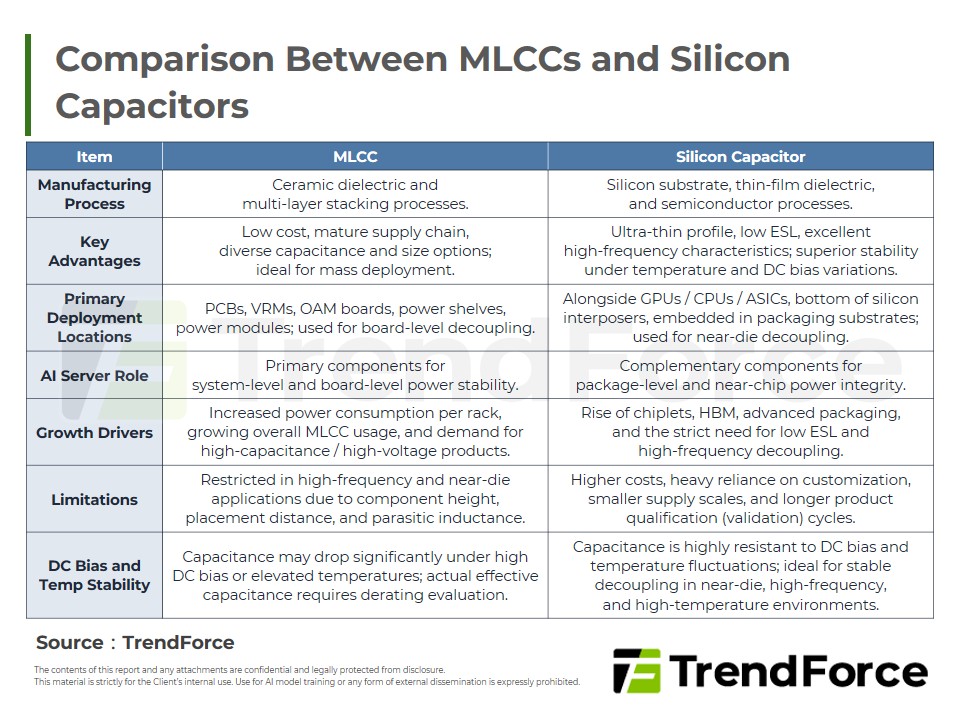

The need for power integrity in AI servers is extending from the board level directly into the package. This shift is driving a transition in capacitor technology, moving beyond a sole reliance on traditional multi-layer ceramic capacitors (MLCCs) toward a layered, complementary approach utilizing both silicon capacitors and MLCCs. While MLCCs remain the primary components for system-level decoupling, filtering, and voltage regulation across PCBs, VRMs, power shelves, and power modules, silicon capacitors offer distinct localized advantages. Their thin profile, low equivalent series inductance (ESL), excellent high-frequency characteristics, and stable capacitance under DC bias and temperature fluctuations make them ideal for near-die decoupling around GPUs, ASICs, HBMs, and within advanced packages. As AI accelerators increasingly adopt chiplets, HBM stacking, and high-power packaging, silicon capacitors are poised to become vital complementary components for package-level power integrity in AI and HPC applications.
